Party Lights - Outdoor Cable

Sold per meter

Illumination Cables

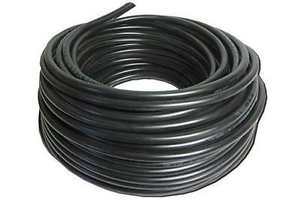

2.5mm², Illumination (PVC/Rubber) Cable

Technical Data

• Voltage Rating: 300/300V
• Cable Size: 2.5mm²
• Number of Cores: 2
• Conductor Resistance @ 20°C Maximum: 7.98 ohm/km
• Current rating *: 25A
• 1Ø Volt Drop: 15 mV/A/m
• Approx. Overall Diameter: 10.2x5.6mm
• Approx. Mass per 100m Coil: 12kg

* Note
- Assumed ambient air temperature 30°C
- Assumed maximum conductor temperature 70°C

How to order

Measure the total length of cable required for outdoor use.

Remember to add a few meters to reach your indoor/outdoor plug-point.

Attach a plugtop to one end of the cable, simply insulate the other end against moisture (use insulation tape).

Attach the Party Lights - Bulb Holders at your required spacing along the length of cable.

Discounted prices automatically applied for 25 and 100m+
